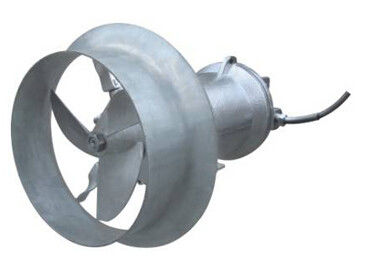

Bomba sumergible del mezclador (molde del hierro, acero inoxidable, poder con el sensor del escape)
Descripción de producto detallada
Usos
Modelo | Poder del motor (kilovatio) |
Corriente clasificada (a) |
RPM de impeledor (r/min) |
Diámetro del impeledor (milímetros) |
Empuje (n) |
Peso (Kilogramo) |
QJB220/960-0.37/S | 0,37 | 1,12 | 960 | 220 | 138 | 45/50 |
QJB220/1400-0.55/S | 0,55 | 1,35 | 1400 | 220 | 145 | 45/50 |
QJB260/740-0.85/C/S | 0,85 | 3,2 | 740 | 260 | 163 | 55/65 |
QJB260/960-1.5/C/S | 1,5 | 4 | 960 | 260 | 290 | 55/65 |
QJB320/740-2.2/C/S | 2,2 | 5,9 | 740 | 320 | 582 | 88/93 |
QJB320/960-4/C/S | 4 | 10,3 | 960 | 320 | 609 | 88/93 |
QJB400/740-1.5/C/S | 1,5 | 5,2 | 740 | 400 | 600 | 74/82 |
QJB400/740-2.5/C/S | 2,5 | 7 | 740 | 400 | 800 | 74/82 |
QJB400/740-3/C/S | 3 | 8,6 | 740 | 400 | 920 | 74/82 |
QJB400/960-4/C/S | 4 | 10,3 | 960 | 400 | 1200 | 74/82 |
QJB620/480-4/S | 4 | 14 | 480 | 620 | 1400 | 190/206 |
QJB620/480-5/S | 5 | 18,2 | 480 | 620 | 1800 | 196/212 |
QJB620/480-7.5/S | 7,5 | 28 | 480 | 620 | 2600 | 240/256 |
QJB620/480-10/S | 10 | 32 | 480 | 620 | 3300 | 250/266 |
QJB560/740-11/S | 11 | 25 | 740 | 560 | 2900 | 194/209 |
QJB560/740-15/S | 15 | 34 | 740 | 560 | 3460 | 260/275 |
QJB740/740-18.5/S | 18,5 | 41 | 740 | 740 | 4200 | 276/294 |
QJB740/740-22/S | 22 | 47,4 | 740 | 740 | 5400 | 292/310 |
QJB620/480-5.5/S | 5,5 | 11 | 480 | 620 | 1800 | 160/176 |
QJB620/480-7.5/S | 7,5 | 15 | 480 | 620 | 2600 | 182/198 |
QJB620/480-11/S | 11 | 22 | 480 | 620 | 3300 | 224/240 |
QJB740/235-15/S | 15 | 30 | 235 | 740 | 3680 | 288/306 |
QJB890/326-18.5/S | 18,5 | 36 | 326 | 890 | 4600 | 364/382 |
QJB890/326-22/S | 22 | 42 | 326 | 890 | 5760 | 380/398 |
